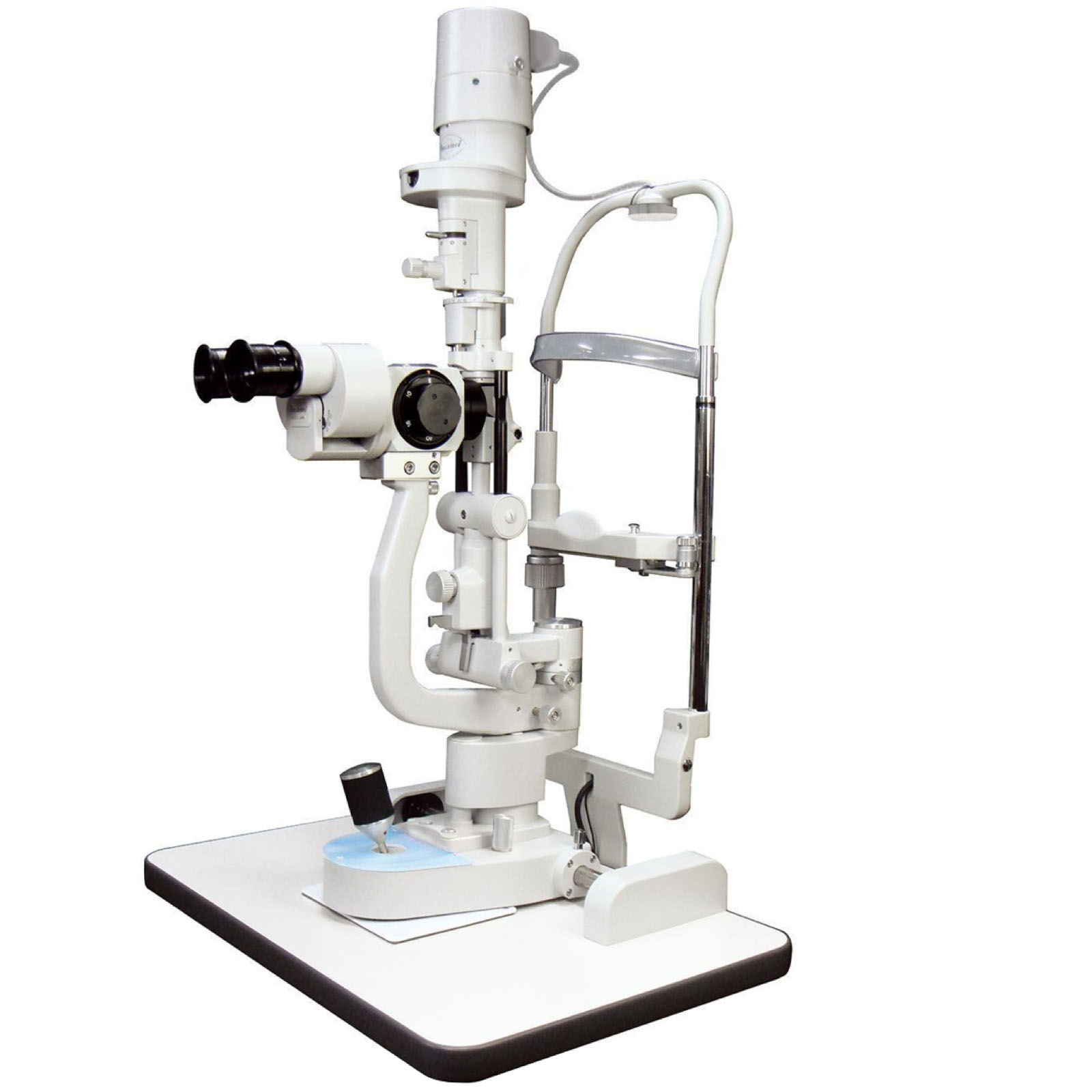

Slit Lamp Microscope with 5 steps Magnifications, Halogen Lamp, Convergent Optics
|
Magnification Changer |
5 steps by drum rotation |
|
Magnification Ratio(Field of View) |
6x (38mm), 10x (24mm), 16x (15mm), 25x (9mm), 40x (6mm) |
|
Light Source |
Lamp bulb 12V/50W (L0160H1) |
|
Vertical Movement |
30mm |
|
Lateral Movement |
115mm |
|
Eyepiece |
12.5x |
|
Focus Distance |
106mm |
|
Max. Intensity (Lux) |
350,000Lux |
|
Longitudinal Movement |
103mm |
|
Fine Base Movement |
±10mm |
Continuous light volume. Continuous light volume controller for fine adjustment.
Convergent optics. Convergent optics for user's comfort.
Digital video camera. Digital video camera beam splitter can be attached.
Half-moon type column. Half-moon type column for laser system attachment.
Digital camera controllable base. Digital camera controllable base for easy photography
(activating this function is optional).
Light booster. Light booster for momentary extra-brightness (halogen type only)
